NORDIFLOW W

Application area:
Water
Diameter:
150 - 1400mm / 6" - 56"
Material:
Glass fibre reinforced felt with high performance coating
Installation:
Inversion or pull-in
Home > Applications

The Advantages at a Glance

  • More than 20 years of experience and track record

  • Pressure liner for drinking water, sewer force mains and industry applications

  • More than 10 national and international drinking water certificates

  • Class A: full structural liner according to ISO 11295 (class B version also possible)

  • Inversion and Pull-in version possible

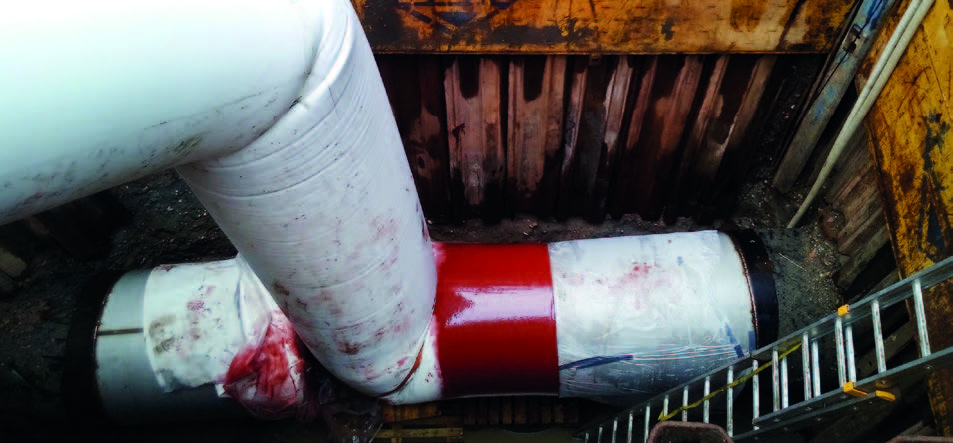

  • Bends are possible

  • Highly adaptable design to meet project requirements

  • Worldwide references

  • PFA up to 16 bar

  • Wide diameter range from 150 - 1400mm / 6" - 56"


Product Characteristics

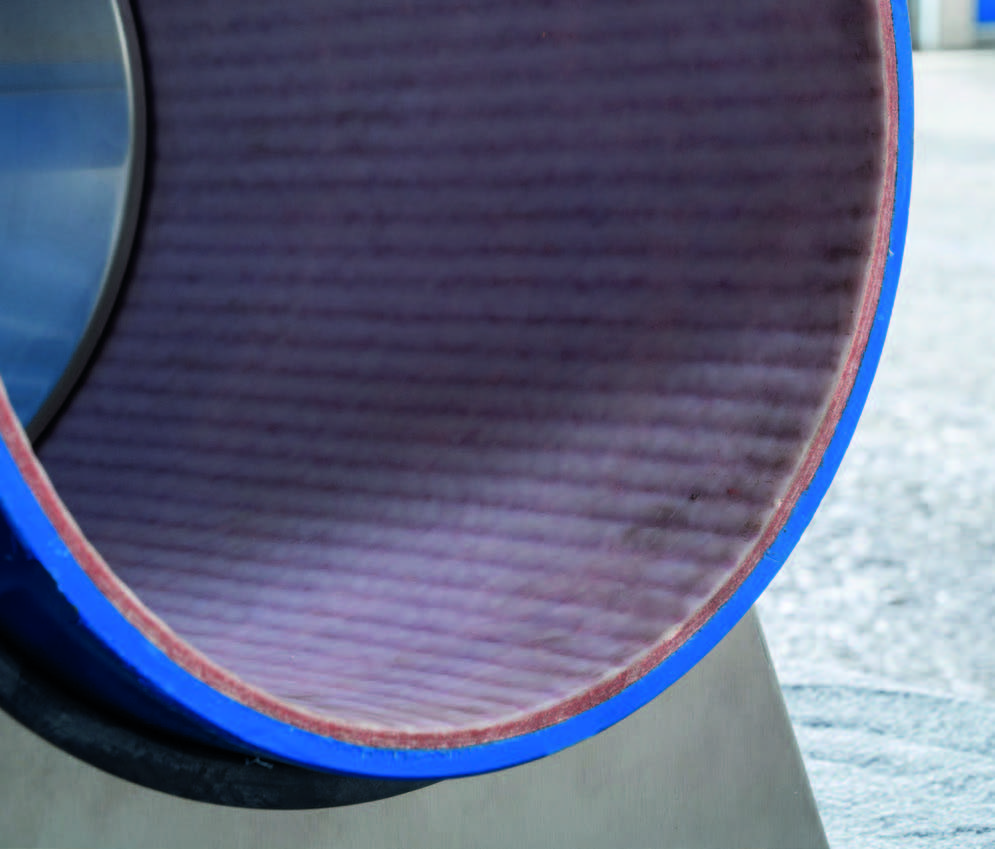

Glass fibre reinforced felt with high performance coating

Liner maintains flexibility to negotiate bends and still achieves the necessary pressure resistance.

Class A according to ISO11295 (Class B also possible)

Due to modular production, the liner can be customized to specific requirements of the project. The liner can be designed to meet Class A or class B standards.

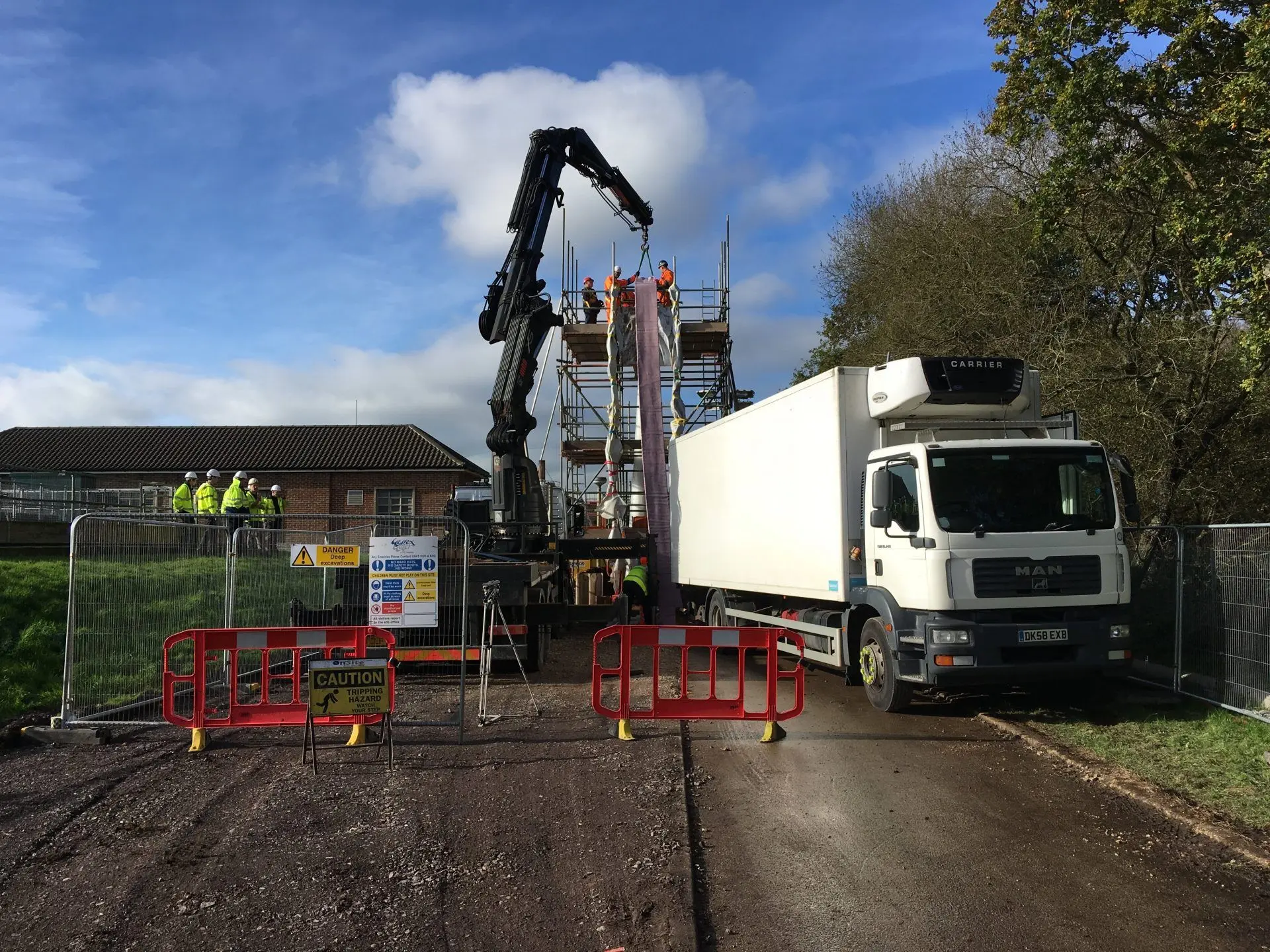

CIPP (Inversion or Pull-In)

Inversion liner to be used with a special developed Epoxy-resin. Liner can also be designed to be installed as pull-in version for longer shots.

Water approvals worldwide

Certified for more than 10 national and international accepted driking water standards worldwide.

Technical Specifications

  • Up to 16 bar operating and 20 bar shorttime pressure (depending on design and diameter)

  • Class A or class B according to ISO11295

  • Glass fibre reinforced felt liner with PE or PP coating

  • ACS, NSF61, KTW-BWGL tested,  BS6940, AS/NZS 4020, SS375, DM174, Poland, Croatia and other regional approvals

  • ISO11297-4
