TUBETEX G

Application area:
Gas
Diameter:
80 - 1200 mm / 3" - 48"
Material:
Woven fabric out of Polyester yarn with high performance coating
Installation:
Inversion
Home > Applications

The Advantages at a Glance

  • Proven quality and technology since 1987

  • Longterm operation pressure PFA: up to 30bar

  • Excellent flexibility

  • Multiple bends can be negotiated

  • Corrosion and leakage protection

  • Thin and seamless product

  • For gas and industry application

  • Wide diameter range 80 - 1200 mm / 3" - 48"

  • Trenchless reopening of connections and laterals

  • Earthquake approved

Product Characteristics

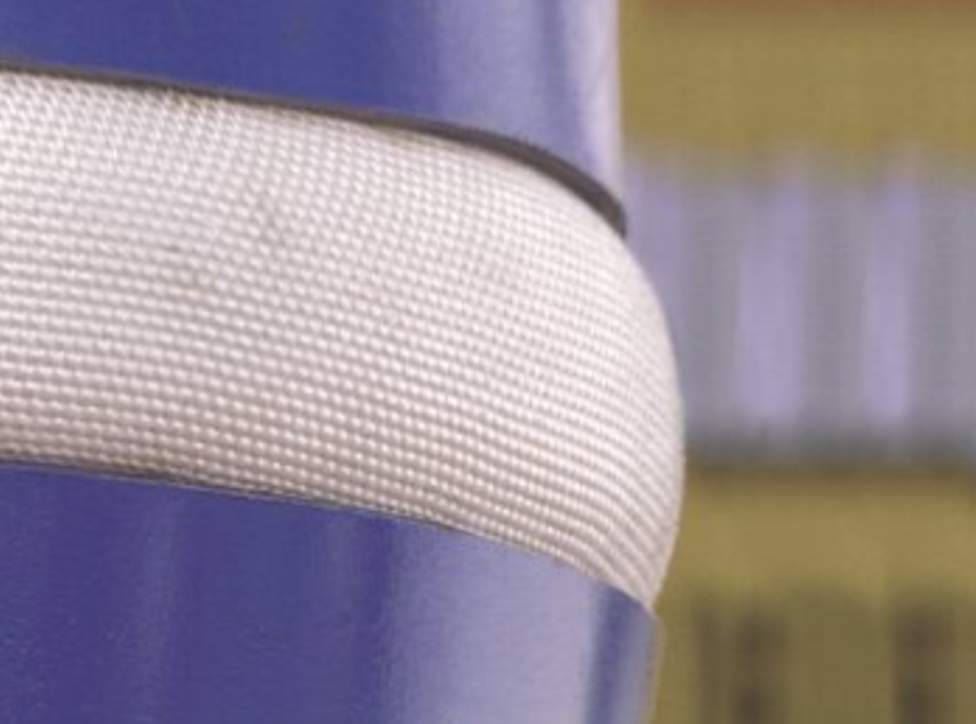

Woven fabric out of Polyester yarn with high performance coating

Thin liner (3mm) without seam. Nearly no loss of diameter and easy application of sealings.

Class C system according to ISO11295

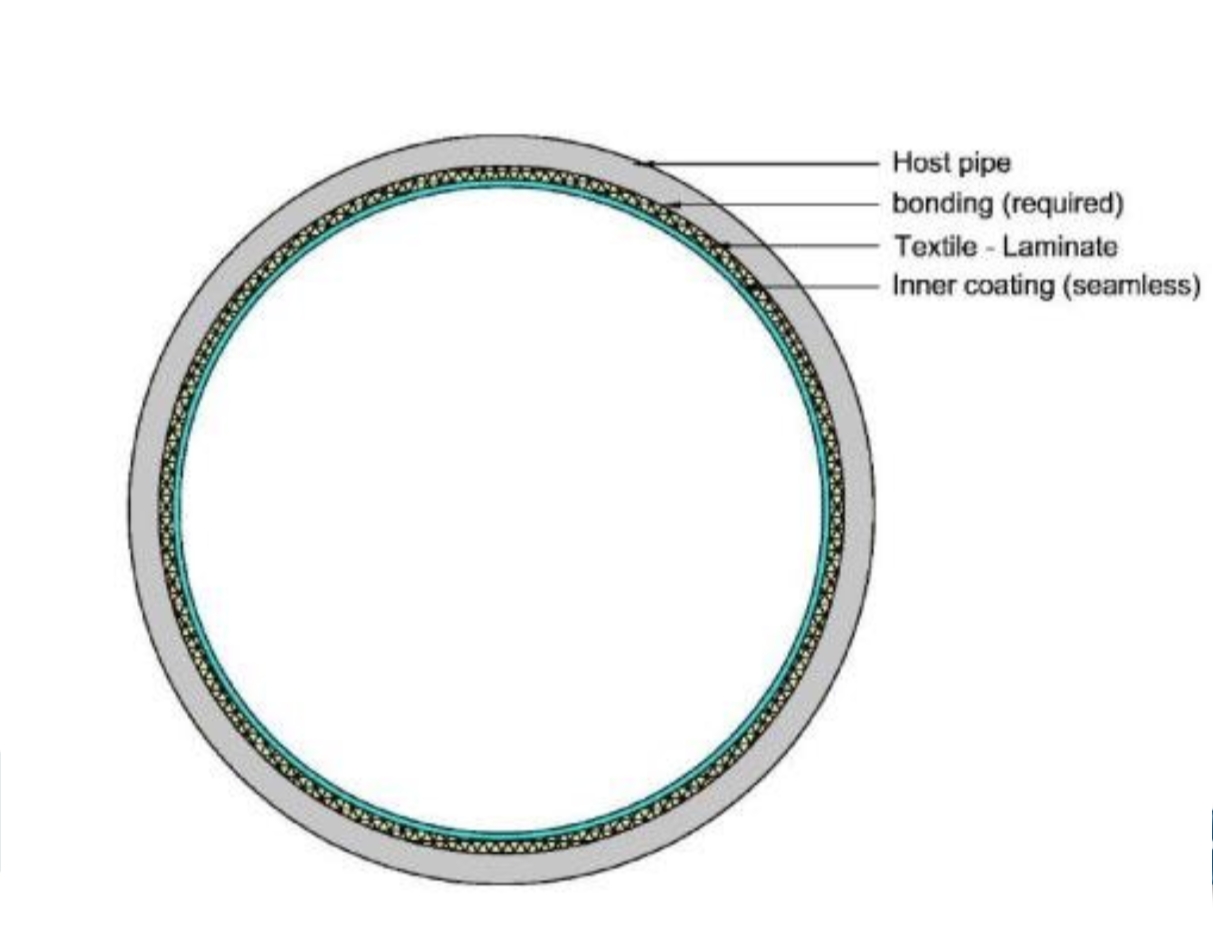

The Tubetex G is an interactive system and entirely bonded to the host pipe. Mechanical properties are given by the host pipe and the liner will provide corrosion and leakage protection.

Earthquake approved

Originally developed for the Japanese market, the liner had to maintain functionality even if the host pipe fails due to an earthquake event.

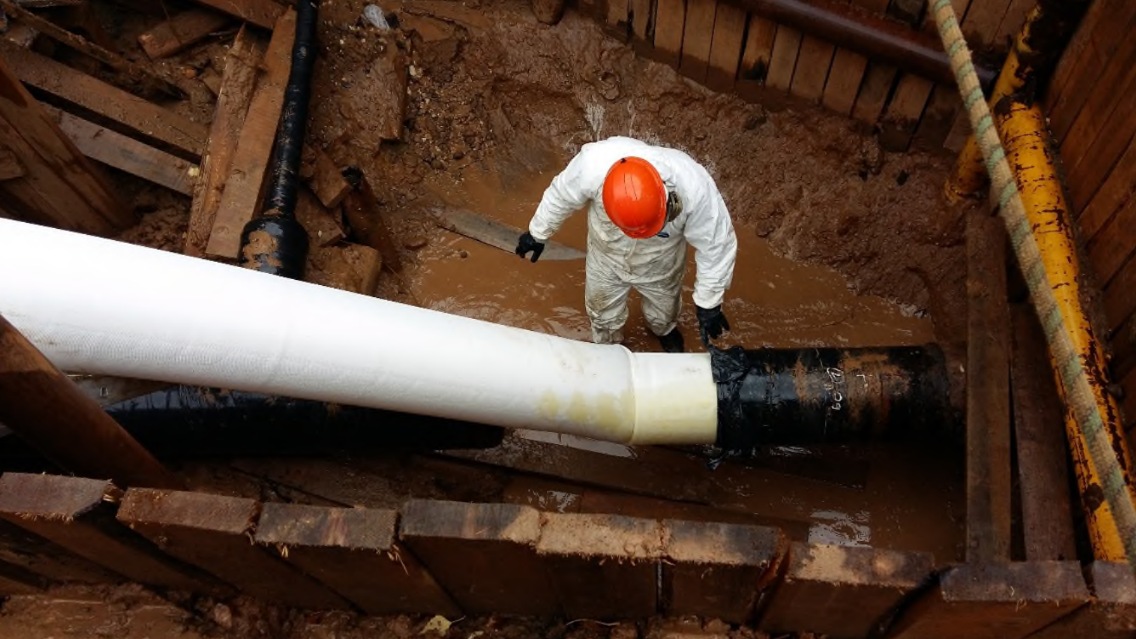

CIPP (Inversion)

Inversion liner to be used with a special developed Epoxy-resin.

Tested according DVGW VP404

German standard for water and gas pipes. Tests include reconnecting and new connections of laterals after installation of the liner.

Technical Specifications

  • Operating pressure up to 30bar

  • Class C: interactive system according ISO11295

  • Polyester yarn with TPU / TPC coating

  • DVGW GW327, VP404
